Washing Machine

U s e r ‘ s M a n u a

T h i s p r o d u c t

h a s b e e n m a n u f a c t u r e d a t

e n v i r o n m e n t a l f r i e n d l y m o d e r n

f a c i l i f i e s .

T h i s p r o d u c t h a s b e e n m a n u f a c t u r e d ...

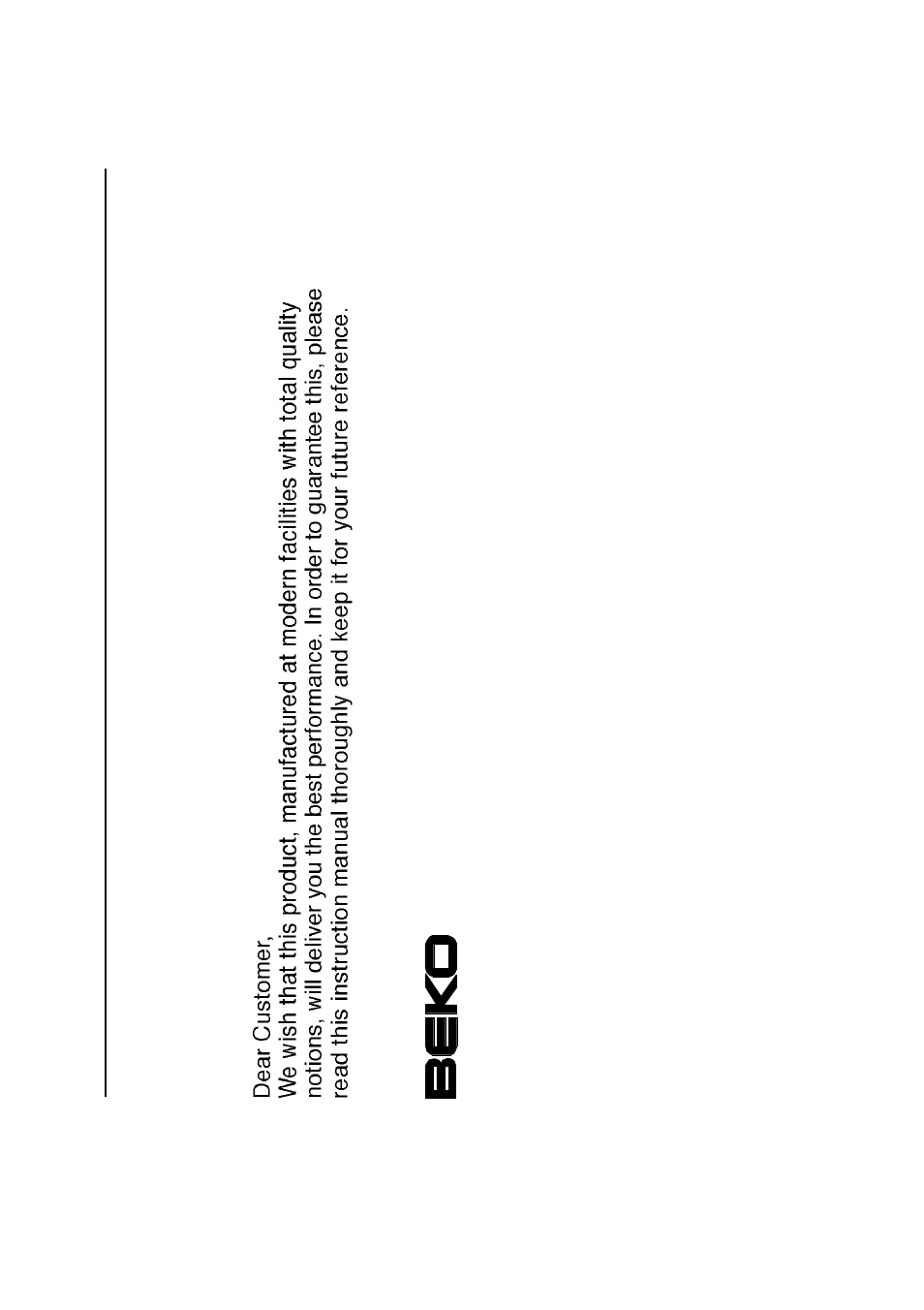

Dear Customer,

We wish that this product, manufactured at modern facilities with total quality

notions, will deliver you the best performance. In order to guarantee this, please
read this instruction manual thoroughly and keep it for your future reference.

Dear Customer, We wish that this product, manufactured at mo...

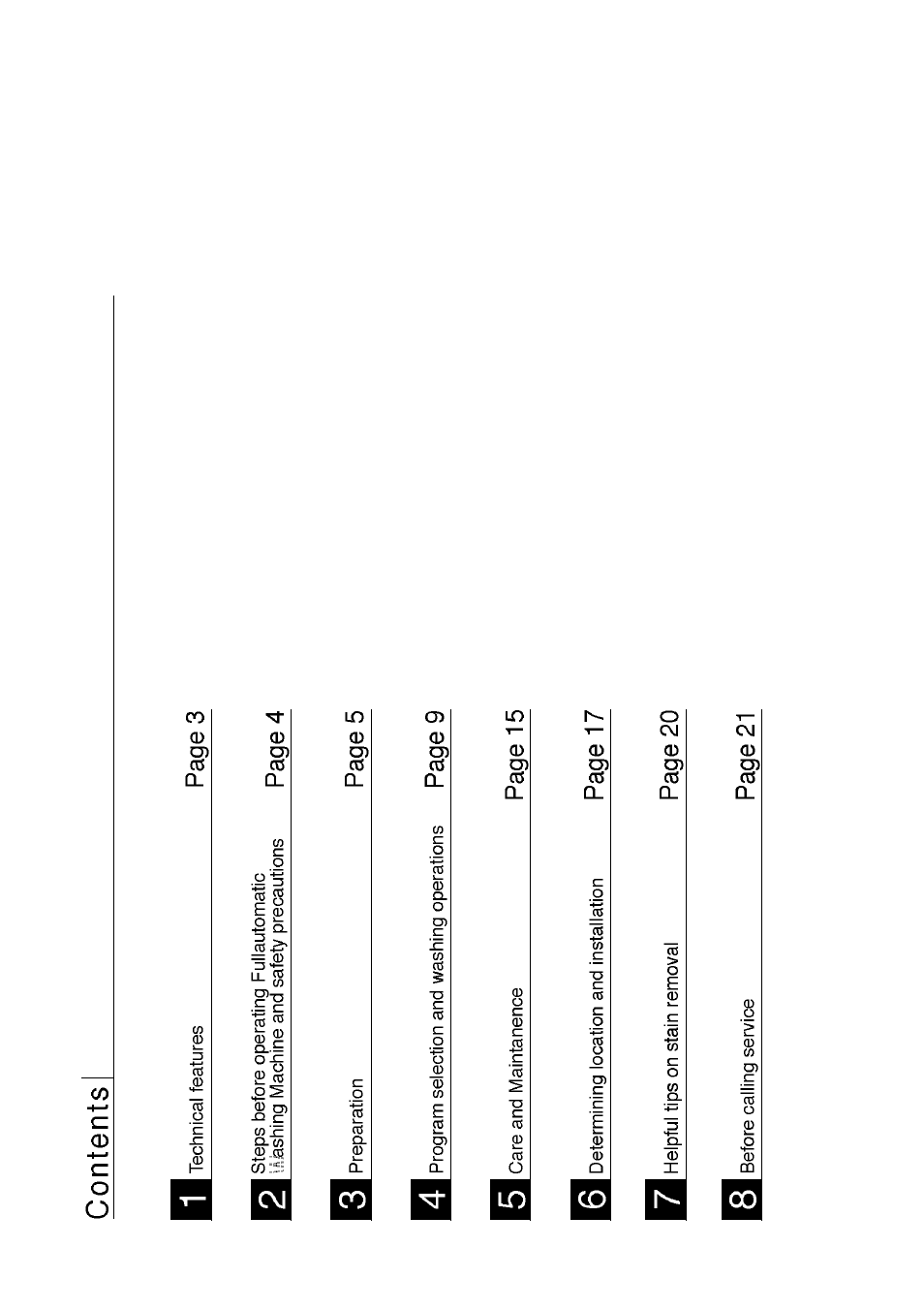

Contents

Technical features

Page 3

I Steps before operating Fullautomatic

lAteshing Machine and safety precautions

Page 4

Preparation

Page 5

EM Program selection and washing operations

Page 9

Care and Maintanence

Page 15

Determining location and installation

Page 1 7

Helpful tips on stain removal

Page 20

Before calling service

Page 21

Technical features

□ □ □

n Top lid

□ Detergent Dispenser

□ Control panel

n Front door

□

Filter cover

Maximum capacity (kg.)

Fleight

(cm.)

Width

(cm.)

Depth

(cm.)

Net weight

(kg.)

Power requirement

(V/Hz)

230/50

Nominal current

(A)

Power

(W)

2350

ashing speed

(rpm)

Spin speed

(rpm)

WMD 55080

800

WMD 55100

1000

The appearance and specifications are subject to change
without notice to raise the unit quality.
The graphics shown in the manual are schematic and it is

possible that they not conform with your washing machine.

3 Steps before operating Fullautomatic Washing Machine and safety precautions

The current requirement in order for safe operation of this machine is 16 Ampheres. You will need to have a certified

electrician to connect a 16 Amp fuse, if there is not enough current load.

Your washing machine is set to 230 Volts.

Do not forget to check the grounding in all cases of use with or without the transformer. Our company will not be

responsible for any damages caused by operations without grounding.

The performance of the washing machine depends on the effectiveness of the cleaning agent. Stains can be

permanent if low quality detergents are used. Please take necessary effort to clean the stained clothes as described
in following pages before washing them in the machine.

Your washing machine is designed only for domestic use.

In order to bring the machine ready to use, please call your service technician or a certified plumber.

If the power cord or the plug is damaged, please call a certified technician.

Always use new “water inlet hose” received within your machine.

Please perform the first wash with detergent, at COTTON 90 program and without placing your laundry inside the

washing machine. This will ensure that the drum is free from any left over dirt from production .

Due to the quality control processes during production, there may be some water left over in your machine.

This does not cause any damage to your product.

Steps before operating Fullautomatic Washing Machine and sa...

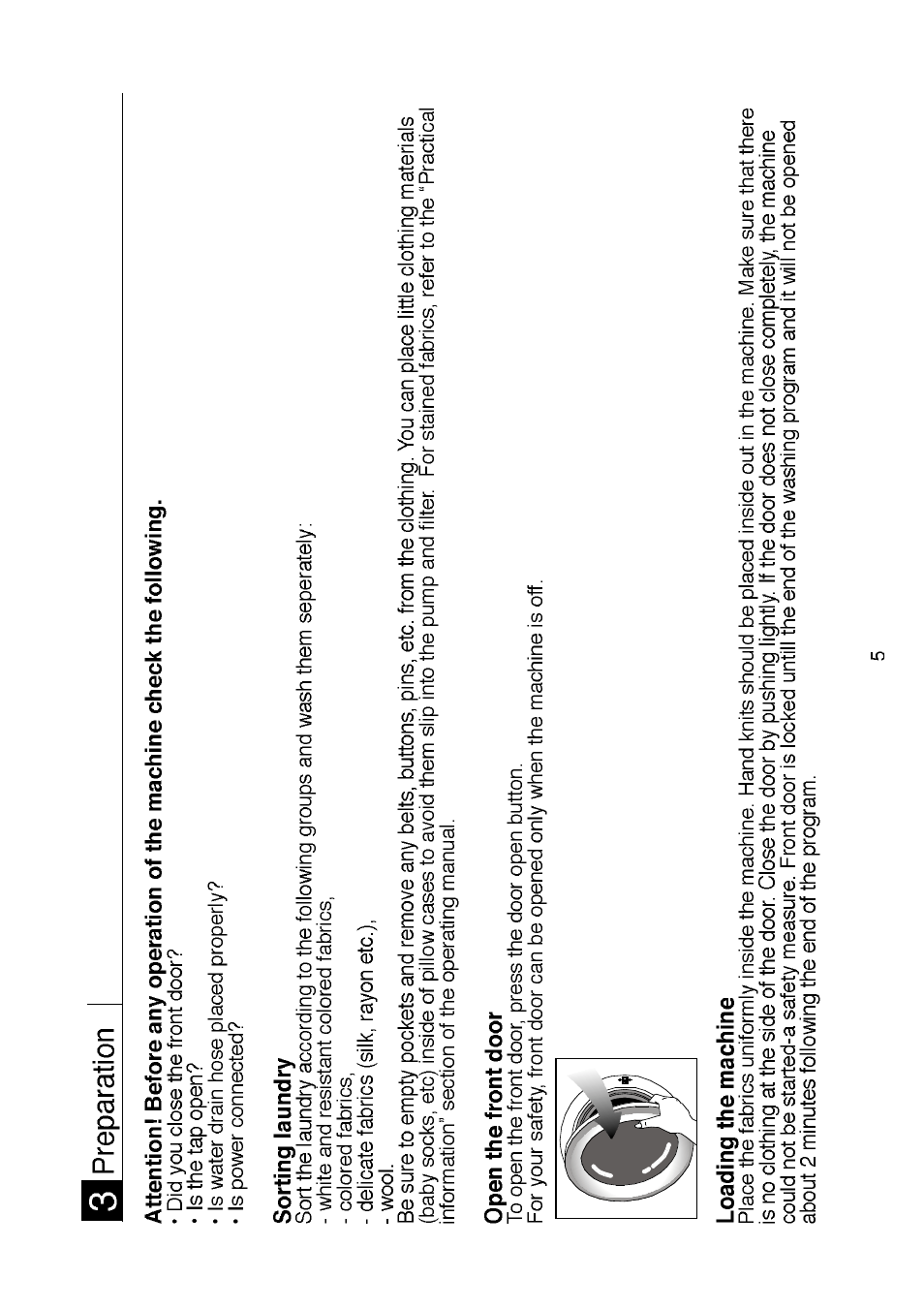

Preparation

Attention! Before any operation of the machine check the foiiowing.

• Did you close the front door?

• Is the tap open?

• Is water drain hose placed properly?
• Is power connected?

Sorting iaundry

Sort the laundry according to the following groups and wash them seperately:
— white and resistant colored fabrics,
— colored fabrics,

— delicate fabrics (silk, rayon etc.),
— wool.

Be sure to empty pockets and remove any belts, buttons, pins, etc. from the clothing. You can place little clothing materials

(baby socks, etc) inside of pillow cases to avoid them slip into the pump and filter. For stained fabrics, refer to the “Practical

information” section of the operating manual.

Open the front door

To open the front door, press the door open button.

For your safety, front door can be opened only when the machine is off.

Loading the machine

Place the fabrics uniformly inside the machine. Hand knits should be placed inside out in the machine. Make sure that there

is no clothing at the side of the door. Close the door by pushing lightly. If the door does not close completely, the machine
could not be started-a safety measure. Front door is locked untill the end of the washing program and it will not be opened
about 2 minutes following the end of the program.

Sorting iaundry, Open the front door, Loading the machine

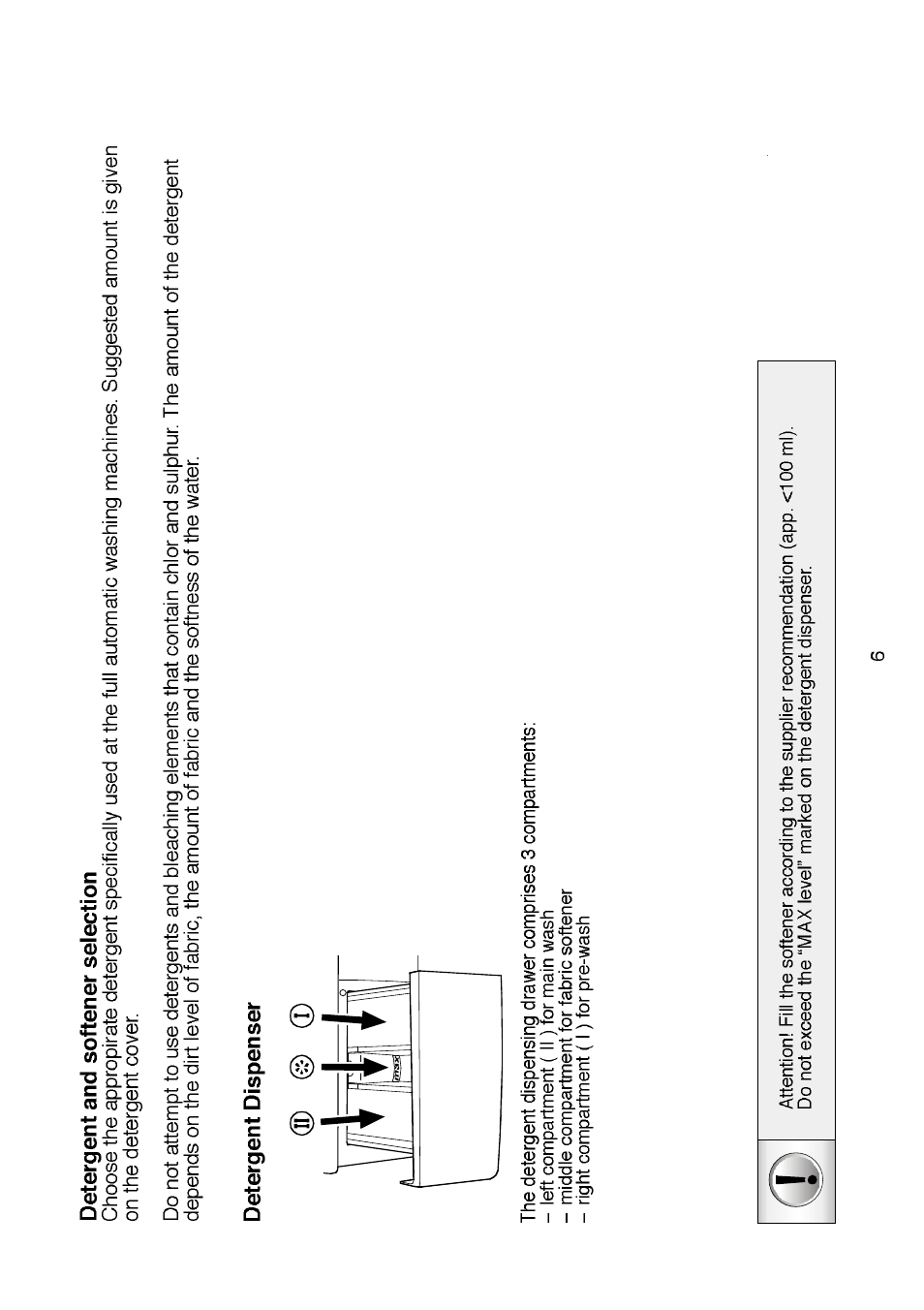

Detergent and softener selection

Choose the appropirate detergent specifically used at the full automatic washing machines. Suggested amount is given
on the detergent cover.

Do not attempt to use detergents and bleaching elements that contain chlor and sulphur. The amount of the detergent

depends on the dirt level of fabric, the amount of fabric and the softness of the water.

Detergent Dispenser

(S) © ©

The detergent dispensing drawer comprises 3 compartments:
— left compartment ( II) for main wash
— middle compartment for fabric softener
— right compartment (I) for pre-wash

AttentlonI FIN the softener according to the supplier recommendation (app. <100 ml).

Do not exceed the “MAX level” marked on the detergent dispenser.

Detergent and softener selection, Detergent dispenser

Control Panel

Program selection knob Auxiliary Functions Program follower

On/Off Button

jeipjess

‘S’

10DD

8D0 4

GOO

400 4

\jl3r«

® •

Spin speed selection

Remain time

Timedelay adjustment button

Start/Pause/Cancel button

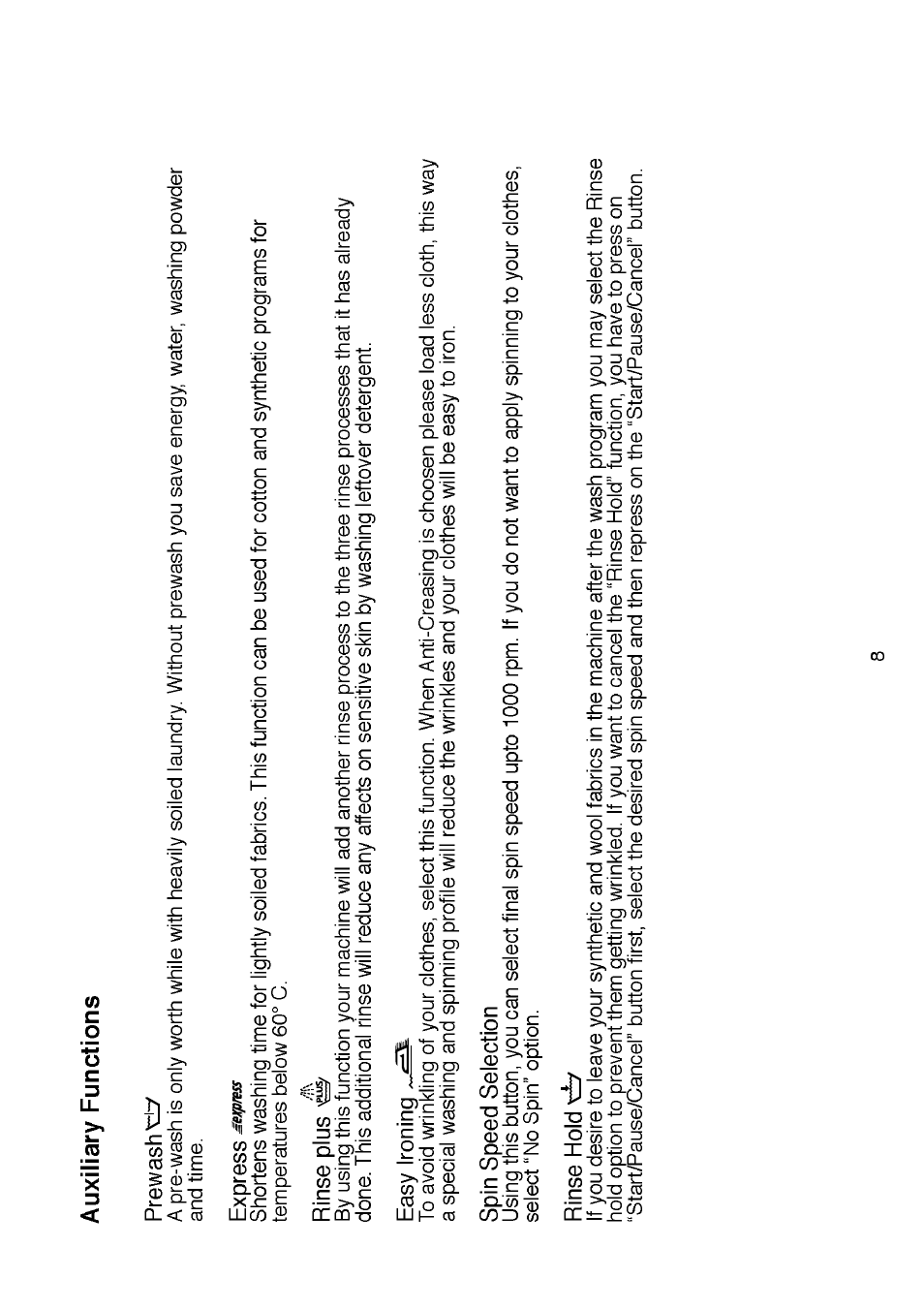

Auxiliary Functions

Prewash

A pre-wash is only worth while with heavily soiled laundry. Without prewash you save energy, water, washing powder

and time.

Express

^ipiess

Shortens washing time for lightly soiled fabrics. This function can be used for cotton and synthetic programs for
temperatures below 60° C.

Rinse plus ^

By using this function your machine will add another rinse process to the three rinse processes that it has already

done. This additional rinse will reduce any affects on sensitive skin by washing leftover detergent.

Easy Ironing

To avoid wrinkling of your clothes, select this function. When Anti-Creasing is choosen please load less cloth, this way

a special washing and spinning profile will reduce the wrinkles and your clothes will be easy to iron.

Spin Speed Selection

Using this button, you can select final spin speed upto 1000 rpm.

select “No Spin” option.

If you do not want to apply spinning to your clothes.

Rinse Hold

If you desire to leave your synthetic and wool fabrics in the machine after the wash program you may select the Rinse

hold option to prevent them getting wrinkled. If you want to cancel the “Rinse Hold” function, you have to press on
“Start/Pause/Cancel” button first, select the desired spin speed and then repress on the “Start/Pause/Cancel” button.

Auxiliary functions, Prewash, Express ^ipiess
